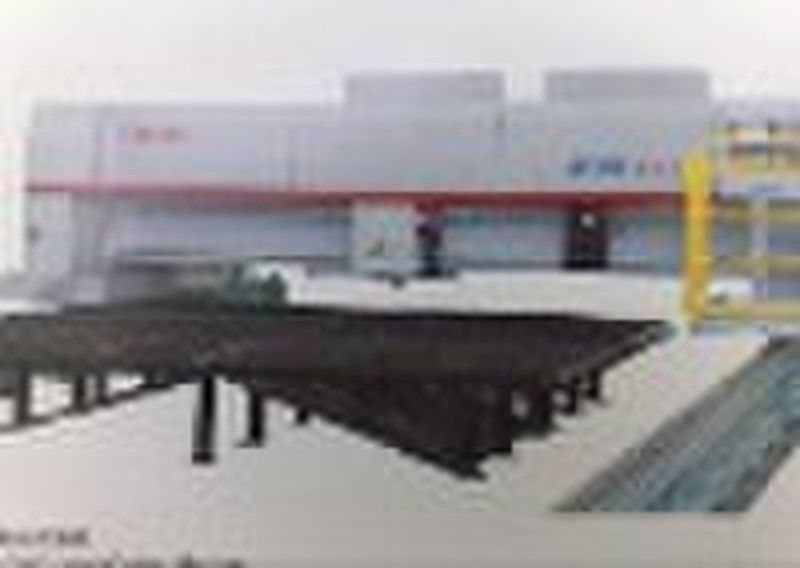

Ground Rail CNC Laser Cutting Machine

The product is now an internationalepidemic of airborne laser,wide noodles,ground-rail type,flying optics cutting systems,machine tool main use of mobile gantry structure,bilateral synchronous drive,import precision rack and pinion drive,grantey moving along the X axis,the laser cutting head in the grantry beam along the Y axis movement;through finite element analysis and optimization design of the grantry beam with a high rigidity,high stability;cutting head components of the movement along the Y axis direction using the same gear,rack drive.X/Y direction-oriented institutions have adopted precision ball linear guide. Main Technical Specifications ItemParameterUnitCutting grange4100×12100mmX axis stroke12100mmY axis stroke4100mmZ axis stroke200mmF axis stroke18mmX/A positioning accuracy±0.1mmX/A repeatability0.05mmY positioning accuracy±0.03mmY repeatability0.01mmX/A max. moving speed30m/minY rapid traverse60m/minX Y max interpolation speed10m/minX Y axis the min volum of program0.001mmLoading capacity6tMachine weight12t
